Control Access to your premises and ensure maximum security and safety at all times..
High quality steel security gates for commercial and industrial applications with Cantilever, Tracked Sliding and Bi Folding mechanisms in manual and electric gate options.
Choose an industrial security gate manufactured by Wisniowski and you are investing in a product designed and manufactured using the very latest technology, based on many years of experience. Cantilever, Sliding or Bi Folding gate mechanisms offering the very best and most reliable form of access control for any commercial or industrial building.
Standard and bespoke sliding and folding security gate solutions - Checked, tested, safety certified and also provided with an anti corrosion 10 year guarantee.
Our Wisniowski commercial steel gate range consists of cantilever gates up to 16 metres wide and tracked sliding gates up to 24 metres wide, covering most commercial and industrial entrance requirements in the UK. Bi folding gates are also an option with up to 10 metre width spans and 250 cycles per day.
Most gates are available as manual or electric operation, single or double gate leaf configurations and a wide range of options for the actual gate leaf design. Several factory finished colours are offered to provide the best final installation.

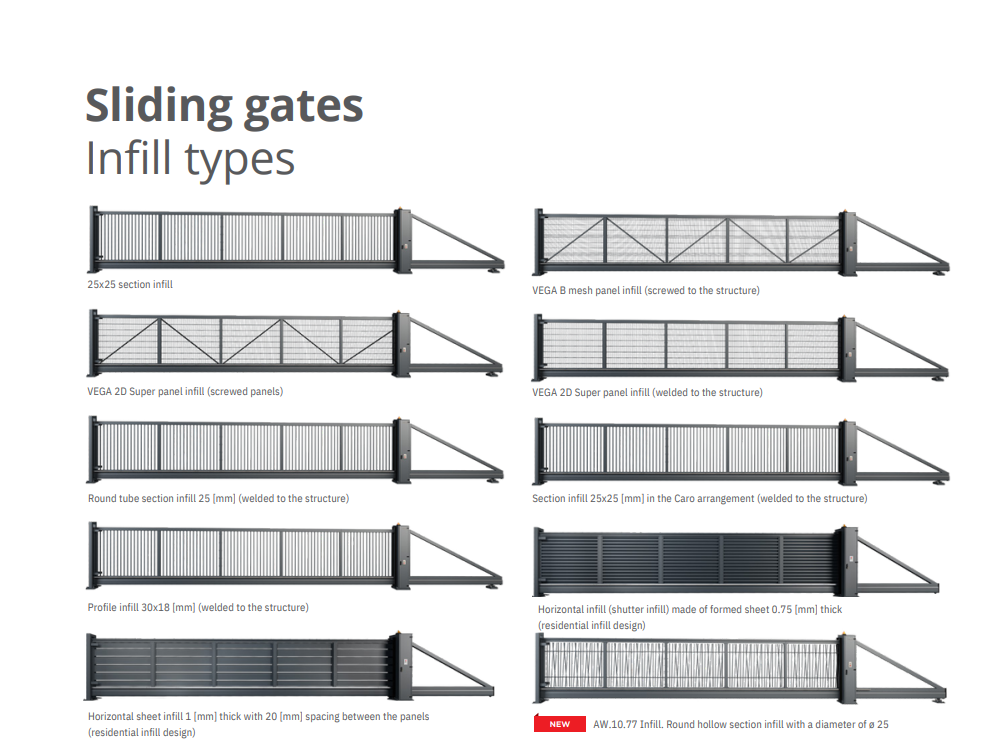

Gate infill designs with 868 mesh, vertical bars (round or square), 358 prison mesh and limited models with palisade pales, or bespoke design to suit. Standard and made to measure sizes in width and height for the perfect final access control for your premises.
Any commercial or industrial premises in 2025 needs to be controlling traffic and all personnel in and out for so many reasons. Securing the premises is also essential these days at all times and an automated sliding entrance gate is about the best way to provide this security, as well as reliability and ease of use day in day out.

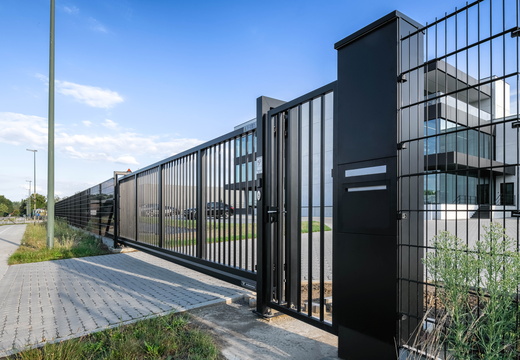

The cantilever gates we offer are smooth and effortless in their movement at any size, without any need for ground tracking. The cantilever action offers so many benefits with minimal maintenance as the primary feature, especially if you have heavy daily traffic or operate 24/7 at your premises.
AGD Systems offer 3 variations with the Wisniowski sliding gate range:

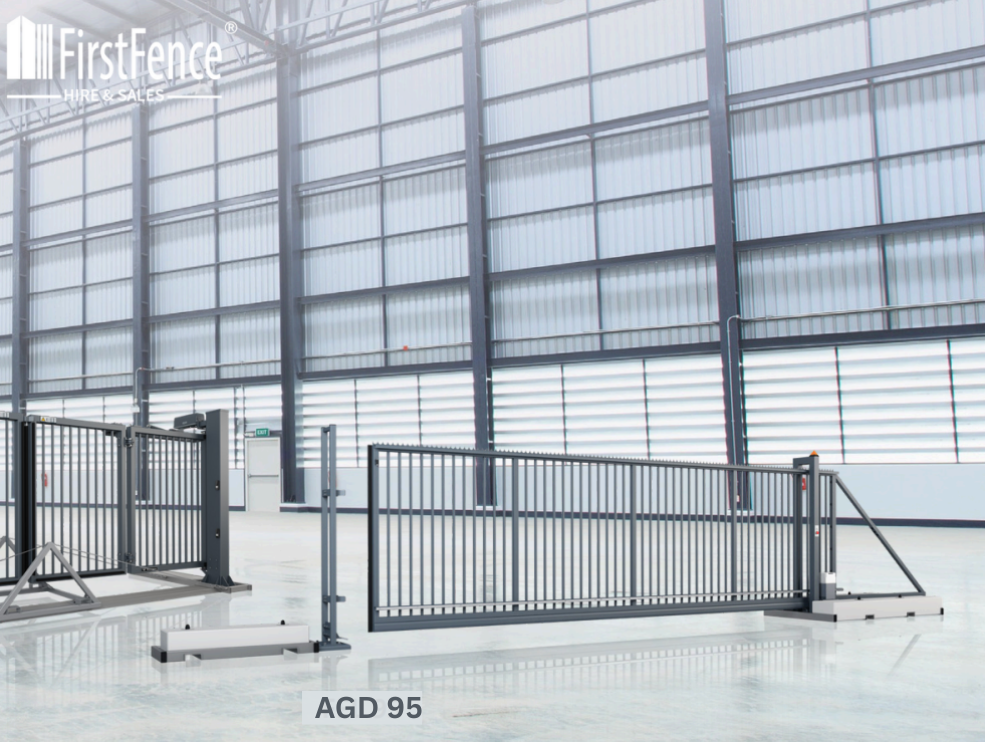

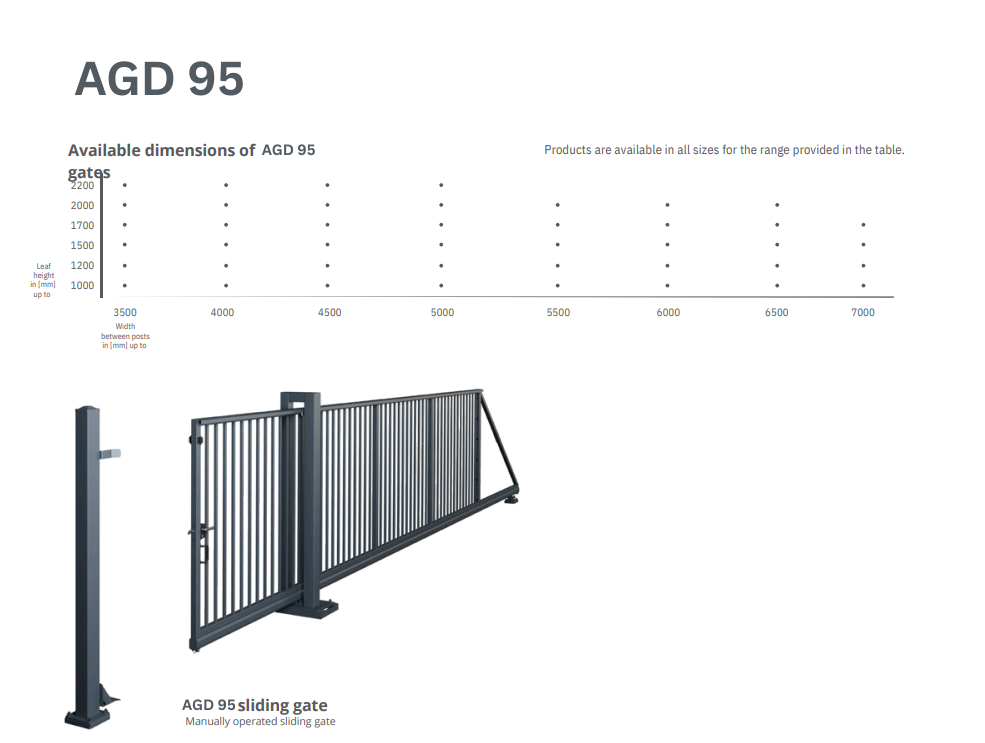

The AGD 95 cantilever gate is perfect for the smaller entrances and can be used in domestic and commercial applications if required. 3.5m to 5.5m wide and available with 3 different gate leaf infill designs.

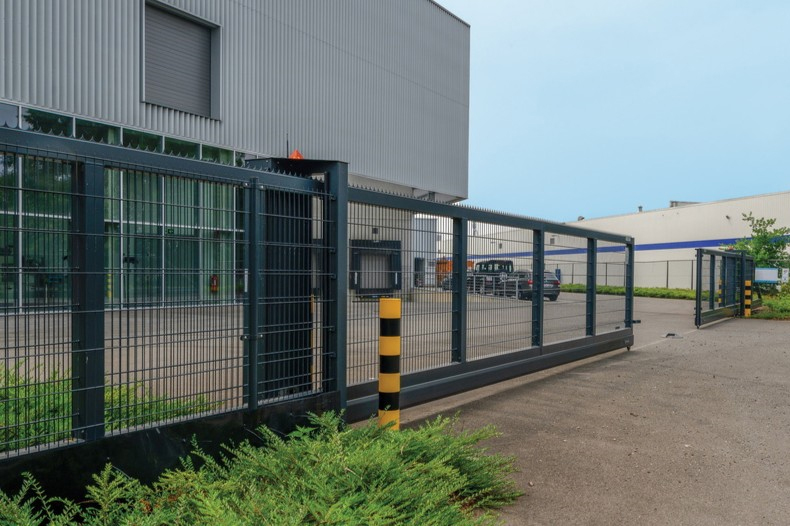

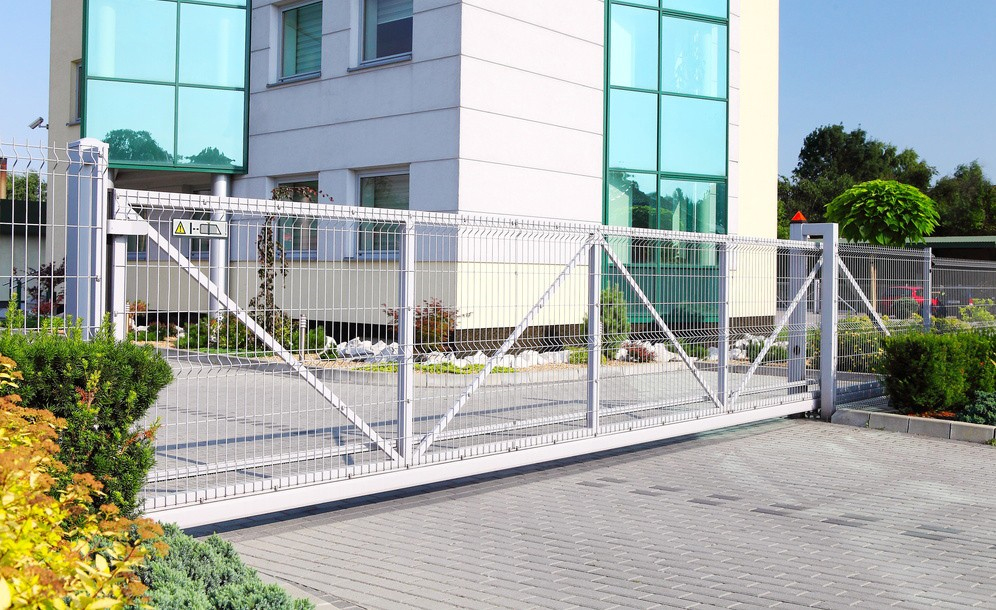

Vertical bar design using 25mm round bars as standard offers a sleek and modern appearance, whilst the 868 mesh infill design enhances security. The palisade infill is nearly always chosen for its more aggressive appearance and more for commercial premises.
The AGD 95 gates are offered as manual or automated systems with multiple controls with the automation system. Complete safety compliance is guaranteed with visual warnings and safety detection systems on every relevant edge and entrapment point.
Remote control is provided as standard with 2 transmitters, but of course the automated gate can be linked into any number of other control systems on site.
Manufactured using high-grade steel for superior strength and longevity
230v electric sliding gate motor - offering 100% duty cycle.
Opening speed up to 9m/min
Finished with a protective coating to withstand harsh weather conditions and prevent rust
Equipped with advanced locking mechanisms to provide maximum security
Safety sensors detect obstructions and halt operation to prevent accidents
Available in a range of 10 standard colours to match any fencing or other building/corporate colours. Special RAL colours on request.
Enhanced security: protects your property with robust, tamper-proof construction and reliable and effective locking mechanisms
The cantilever mechanism reduces ground contact, minimising maintenance and ensuring long-term performance with minimal contact operation.
Automated operation and smart technology integrations make access control user-friendly
2-year manufacturer warranty.

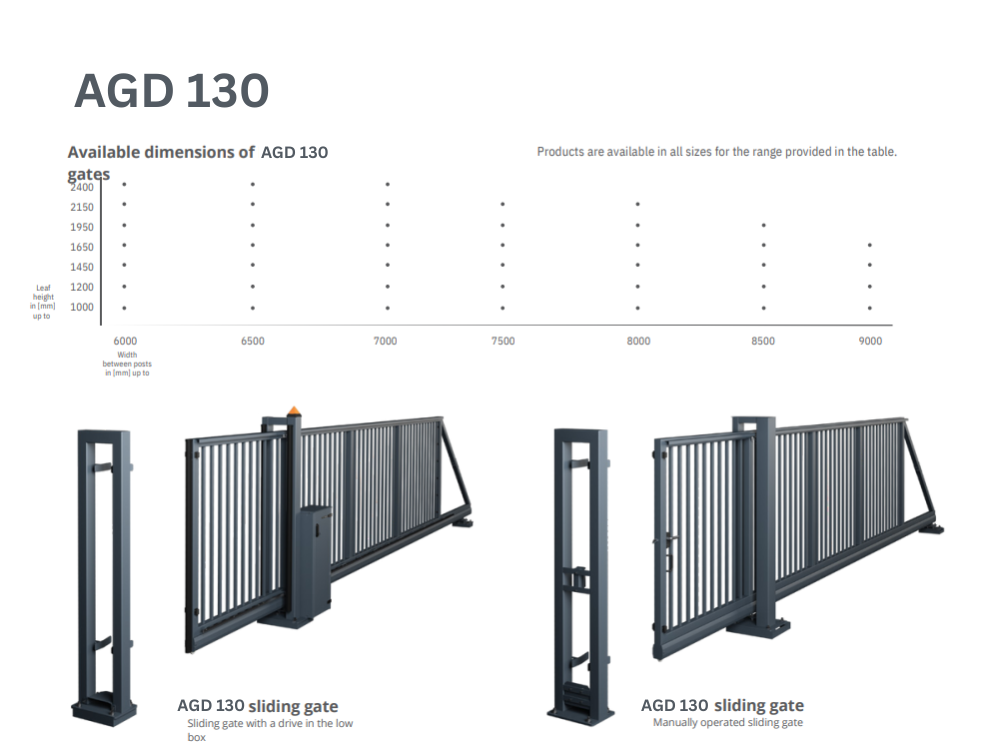

The AGD 130 Automated cantilever commercial gate is perfect for medium sized entrances - offered between 6m and 7.5m wide. The same gate leaf infills can be specified along with the automation controls and colours.

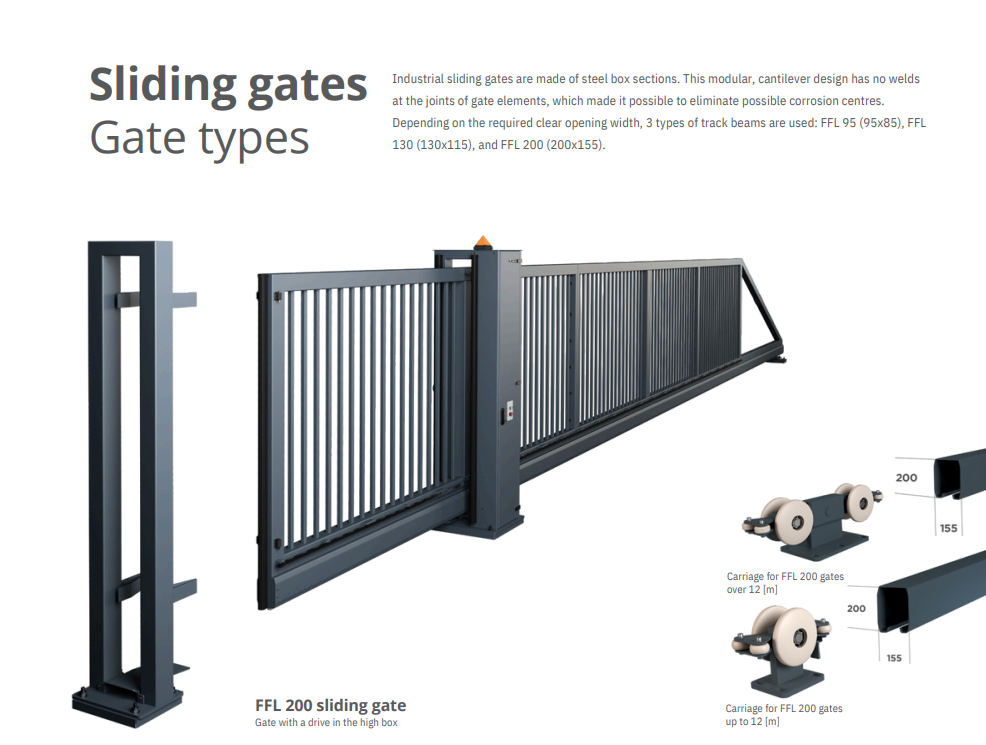

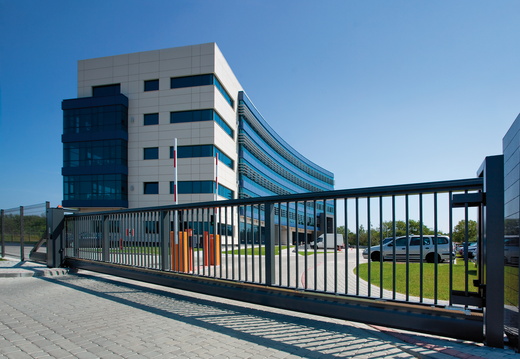

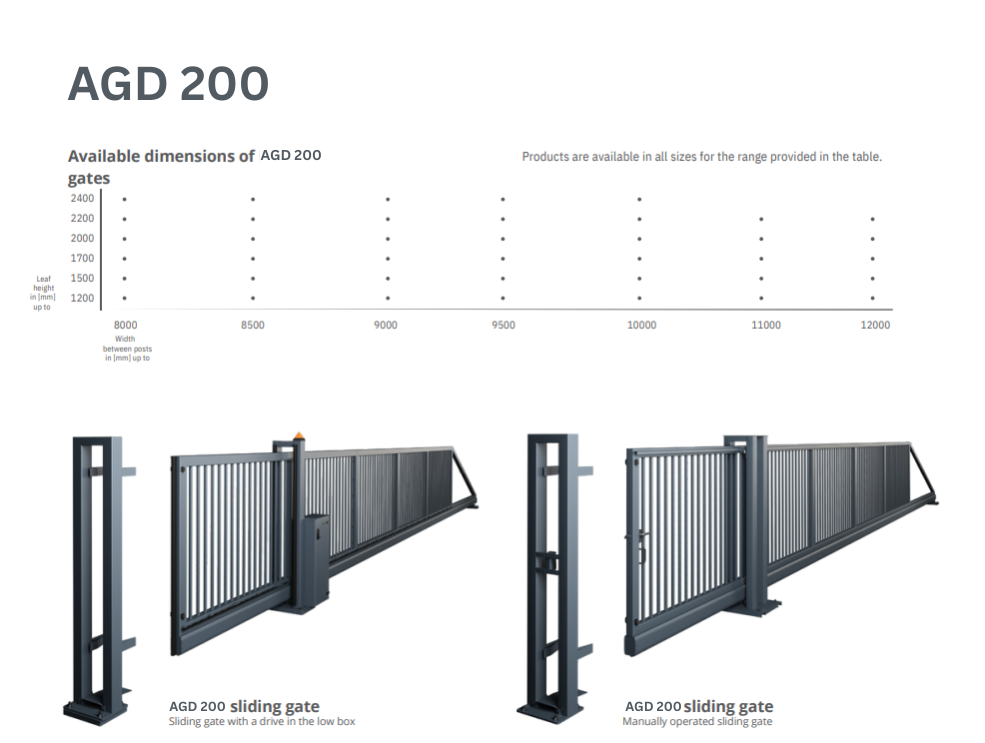

The AGD 200 Automated cantilever gate is the largest gate size for industrial and commercial premises. Between 8m and 12m wide (24m with double leaf gates) and providing maximum security with the same colours and leaf infill designs still offered.
The whole AGD range of gates are manufactured from high quality steel with galvanised components and a protective coating to resist rust and corrosion for longevity.
Security Fencing
We also offer matching steel security fencing when required to compliment the gate designs and ensure continuity of style and security for your perimeter.
The AGD 120T and AGD 200T from the Wisniowski commercial gate range offer traditional sliding gates with a bottom rolling track system which does have the benefit of requiring less space to open and close if space is limited. A level ground surface is essential for correct installation and operation.
The same high quality steel construction and model options and infills are available with manual or electric operation choices.
A traditional electric sliding access gate can be manufactured to almost any width required and AGD Systems offer many other sliding gate options, standard and bespoke for almost any application, size or specification.
Bi folding automatic gates are used where space is limited and speed of opening and closing is important as they can operate faster than many other automated gate systems.
Our ranges are fully customisable with widths offered between 2.5m wide and 10m wide with multiple gate leaf designs as standard, or more bespoke designs if required.
Safety is paramount with a bi folding electric gate and multiple safety sensors are fitted as standard on any of the folding gate models to ensure complete safety when operating. Most folding gates are used for vehicular traffic and when opening is required as fast as possible.
Bi-folding automated gates are always trackless and use a driven integrated frequency converter, single phase electric power which supplies a three-phase motor, worm, and wheel gearbox, with a direct drive shaft, attached to the gate leaf. The gate is supplied with a programmable logic control board which can be found within the gates attached pillar.
The Wisniowski bi-folding gate is made from galvansied steel and has a polyester powder coating to not only enhance visibility, but also help prevent damage caused by rust and general wear and tear. It’s easy to install and very low maintenance.
